Freeze dryers (also known as lyophilizers) are widely used in pharmaceuticals, biotechnology, food processing, and scientific research. Their core function is to remove moisture from materials under low-temperature and vacuum conditions, thereby preserving biological activity and structural integrity to the greatest extent. Because freeze-drying equipment operates under strict low temperature, vacuum, and precision control conditions, improper maintenance can easily lead to reduced efficiency, product instability, or even equipment failure. Therefore, establishing a scientific maintenance system is essential.
Freeze drying works by first freezing the material at low temperature, turning water into ice, and then sublimating the ice directly into vapor under a vacuum environment. The vapor is then removed from the system. This process avoids the liquid phase entirely, effectively preserving the structure and activity of sensitive materials.
Since the process relies heavily on temperature control and vacuum stability, even small fluctuations may cause uneven drying or product collapse, making system stability critical.

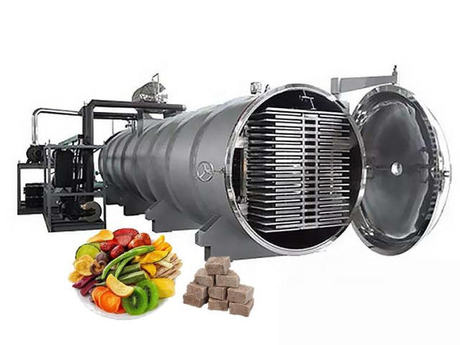

A freeze dryer typically consists of a refrigeration system, vacuum system, heating system, control system, and drying chamber. The refrigeration system rapidly freezes the material, the vacuum system creates a low-pressure environment, the heating system provides energy for sublimation, and the control system manages the entire automated process.
All subsystems work together, and failure in any single part can significantly affect the final drying quality.
The vacuum system is one of the core components of a freeze dryer, directly affecting sublimation efficiency. Operators should regularly check vacuum pump oil level and oil quality. If emulsification or contamination is detected, the oil must be replaced promptly.
In addition, pipelines and sealing components should be inspected for leakage. Even minor air leaks can significantly reduce vacuum performance and affect process stability.
The refrigeration system is responsible for pre-freezing materials and capturing moisture in the cold trap. Its performance directly impacts drying efficiency. Regular inspection of compressor temperature, refrigerant pressure, and condenser cleanliness is required.
If excessive frost builds up in the cold trap or cooling efficiency declines, defrosting or refrigerant leakage checks should be performed promptly.
The heating system controls energy input during the sublimation phase, ensuring ice is properly converted into vapor. Daily inspections should focus on heating plate uniformity and temperature control accuracy.
If uneven heating or large temperature fluctuations occur, material structure damage may result. Therefore, temperature sensors should be calibrated regularly and heating elements checked for aging.
The drying chamber is frequently exposed to biological or food materials and may accumulate residues or ice deposits. It should be thoroughly cleaned after each cycle to avoid cross-contamination.
At the same time, trays should be inspected for deformation or corrosion to ensure uniform heat transfer and consistent drying results.
This issue is usually caused by system leakage or reduced pump performance. A step-by-step leak inspection of seals, pipelines, and joints should be performed to locate the source.
If vacuum pump oil is heavily contaminated, its pumping efficiency will decrease and oil replacement is required.
Insufficient cooling is often related to low refrigerant levels, compressor faults, or poor condenser heat dissipation. Refrigerant pressure should be checked, and condenser surfaces should be cleaned regularly.
Under high-load operation, compressor overload protection should also be considered.
Extended drying time may result from insufficient vacuum, reduced heating efficiency, or excessive material loading. A complete analysis of process curves is necessary to identify bottlenecks.
Uneven material distribution should also be checked to ensure consistent drying.
Control system alarms are often caused by sensor faults or incorrect parameter settings. Temperature probes and pressure sensors should be inspected, and PLC settings should be verified.
If necessary, restoring factory settings and recalibrating the system may be required.
Standardized procedures help reduce human errors during operation. Parameters such as pre-freezing time, vacuum start sequence, and sublimation curves should be standardized to ensure batch consistency.
SOPs also help technicians quickly identify abnormal process steps.
Compared with reactive repairs, preventive maintenance significantly reduces downtime risks. Monthly, quarterly, and annual inspection plans should be established to cover vacuum, refrigeration, and control systems.
This approach effectively extends equipment service life.
By introducing real-time monitoring systems, temperature, vacuum level, and drying curve trends can be analyzed. Early detection of anomalies allows timely intervention.
Long-term data collection also helps optimize freeze-drying parameters and improve product quality stability.
Operator competence directly affects equipment performance. Regular training should be conducted to ensure understanding of standard procedures and basic fault diagnosis methods.
This is especially important in pharmaceutical and biotech applications where process accuracy is critical.
Freeze dryers are high-precision low-temperature drying systems, and their operational stability directly affects product quality and production efficiency. Through scientific daily maintenance, systematic fault diagnosis, and standardized operation management, equipment reliability and service life can be significantly improved. In practical applications, preventive maintenance should be considered a core strategy to achieve a more efficient and stable freeze-drying process.
