Selecting the appropriate natural gas valve model is a critical task in gas system design, equipment procurement, and engineering construction. Natural gas is highly flammable, explosive, and diffuses rapidly, which places extremely high demands on valve sealing performance, pressure resistance, and operational reliability. If a valve is improperly selected, it may cause excessive pressure drop, unstable flow, increased maintenance costs, gas leakage, or even serious safety incidents.
In city gas distribution systems, natural gas pressure regulating stations, industrial boiler fuel supply systems, and petrochemical plants, different operating conditions require different valve structures, material configurations, and actuation methods. Therefore, only by thoroughly understanding the properties of natural gas, the technical characteristics of various valve types, and sound selection principles can engineers choose a valve model that is both safe and cost-effective.
The primary functions of natural gas valves are shut-off, regulation, pressure stabilization, and safety protection. They are not only control components in piping systems but also critical barriers for protecting equipment and personnel.
Improper valve selection may lead to the following issues:
Inadequate sealing performance, resulting in gas leakage
Incorrect flow calculations, causing excessive pressure drop
Poor corrosion resistance, reducing service life
Mismatched actuator types, leading to automation failures
Oversized or undersized valves, resulting in unnecessary investment or unstable operation
Therefore, selecting a natural gas valve involves much more than simply determining the pipe size. It is a systematic engineering task involving fluid dynamics, materials science, safety standards, and automation technology.
In natural gas systems, different valve types serve different functions. The first step in valve selection is to define whether the valve is intended for emergency shut-off, routine isolation, pressure regulation, or backflow prevention.
Ball valves are among the most widely used valve types in the natural gas industry. They operate by rotating a bored ball 90 degrees and offer low flow resistance, excellent sealing, and easy operation.
Because ball valves provide bidirectional sealing and rapid shut-off, they are extensively used in gas transmission pipelines, pressure regulating stations, and industrial combustion systems, especially as emergency shut-off valves.
Gate valves are designed for full-open or full-closed service. Their straight-through flow path minimizes pressure loss, making them suitable for large-diameter gas pipelines.
However, they are not ideal for frequent operation because of their relatively slow opening and closing times.
Globe valves offer good throttling performance and are suitable for applications requiring precise flow and pressure control.
Since the flow direction changes inside the valve, they have higher pressure loss and are generally used in small- and medium-sized systems.
Pressure regulating valves automatically reduce high upstream pressure to a stable downstream set pressure and are essential components in natural gas pressure reduction stations and industrial combustion systems.
Solenoid valves are commonly used in burners and automated control systems. They can rapidly shut off gas supply when abnormal conditions are detected and are key components in safety interlock systems.
Check valves prevent reverse flow and protect compressors, regulators, and other critical equipment from damage caused by backflow.
Natural gas valve selection must be based on actual operating parameters rather than experience alone.
Determine the maximum operating pressure and design pressure of the system. Common pressure ratings include PN16, PN25, PN40, Class 150, and Class 300.
The valve pressure rating should exceed the maximum operating pressure and include an adequate safety margin.
Although natural gas is generally handled at ambient temperature, pressure reduction may cause significant cooling due to the Joule–Thomson effect.
In cold climates or large pressure-drop applications, low-temperature effects on valve materials and seals must be considered.
Valve size should be determined based on maximum flow rate, allowable velocity, and acceptable pressure drop. Undersized valves increase resistance, while oversized valves may lead to unstable control and higher costs.
For control and regulating valves, Cv or Kv values are critical selection parameters. Proper sizing ensures stable operation within the recommended valve opening range of 30% to 80%.
Natural gas systems require extremely tight sealing. Valves should ideally meet ANSI/FCI 70-2 Class VI or ISO 5208 Rate A standards.
Valve materials directly affect pressure resistance, corrosion resistance, and long-term reliability.
Component | Common Materials | Characteristics |
Valve Body | WCB Carbon Steel, CF8/CF8M Stainless Steel | High strength, suitable for various environments |
Ball/Plug | 304 Stainless Steel, 316 Stainless Steel | Excellent corrosion and wear resistance |
Seat | PTFE, RPTFE, PEEK | Excellent sealing performance and low friction |
Seal Ring | NBR, FKM, EPDM | Selected according to temperature and media conditions |
Stem | 17-4PH Stainless Steel, 316 Stainless Steel | High strength and corrosion resistance |
For natural gas containing hydrogen sulfide (H₂S), materials compliant with NACE MR0175 should be used to prevent sulfide stress cracking.
Suitable for applications with infrequent operation and no remote control requirements. It is simple and cost-effective.
Offers fast response and excellent explosion-proof performance. Pneumatic actuation is the most common choice in natural gas systems.
Ideal for sites without compressed air supply and provides precise control. Explosion-proof designs are required in hazardous areas.
Typically used for ultra-high-pressure and large-diameter transmission pipelines, where high output force and stability are essential.
Fully welded trunnion-mounted ball valves are recommended for their zero-leakage design, long service life, and minimal maintenance requirements.

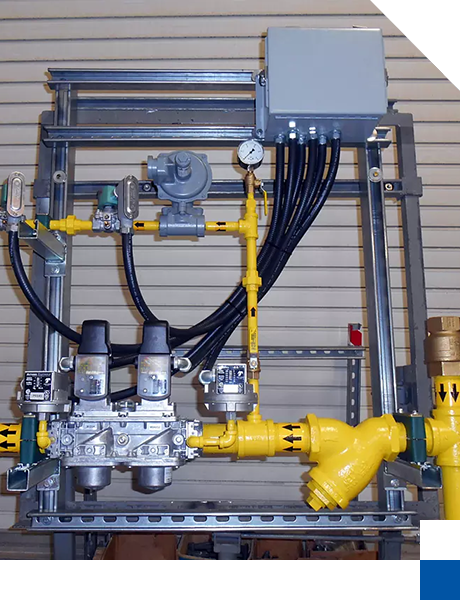

Pilot-operated regulators, slam-shut valves, and filters are commonly used together to ensure stable pressure control and overpressure protection.
Pneumatic ball valves, solenoid valves, and proportional control valves are recommended to meet combustion control and safety interlock requirements.
Stainless steel or specialty alloy valves are preferred to withstand corrosive media and harsh operating environments.
Valves are critical safety devices. Choosing the lowest-cost option may compromise sealing performance and durability.
Proper selection should be based on flow calculations, pressure drop, and Cv/Kv values.
Electric and solenoid valves used in hazardous areas must meet relevant explosion-proof certifications.
If the gas contains moisture, sulfur compounds, or particulates, corrosion-resistant materials and filtration systems should be considered.
Choosing the right natural gas valve model requires a comprehensive evaluation of valve type, pressure, temperature, flow rate, leakage class, materials, and actuation method. Because performance requirements vary greatly across applications, scientific analysis and engineering calculations are essential.
In the natural gas industry, valves are far more than simple control devices—they are fundamental safety components. Proper valve selection improves supply stability, minimizes leakage risks, extends service life, and ensures long-term safe and efficient system operation.
