The condensate return pump system is widely used in industrial steam systems, boiler rooms, and thermal energy recovery units. Its main function is to collect condensate generated during heat exchange processes and return it for reuse in the boiler or thermal system. This improves energy efficiency, reduces water consumption, and minimizes thermal losses. Due to long-term operation under high temperature, high pressure, and intermittent working conditions, improper maintenance may lead to efficiency degradation or equipment failure. Therefore, scientific maintenance and systematic troubleshooting are essential.
The condensate return pump system collects condensate generated from heat exchange equipment or pipelines and uses pump power to transport it back into the boiler system for reuse. This process not only conserves water resources but also recovers part of the thermal energy, improving overall system efficiency. The system typically operates automatically based on liquid level or pressure changes.

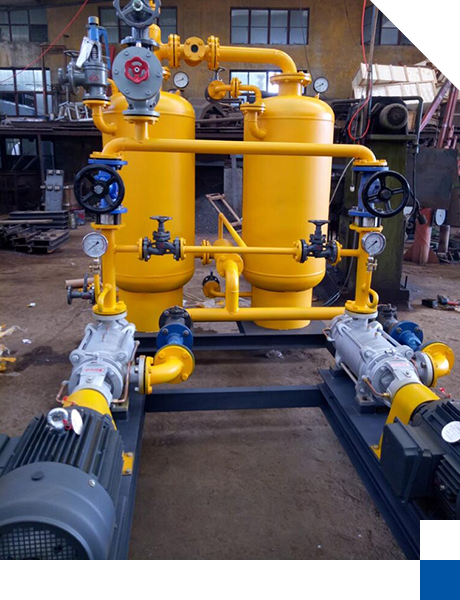

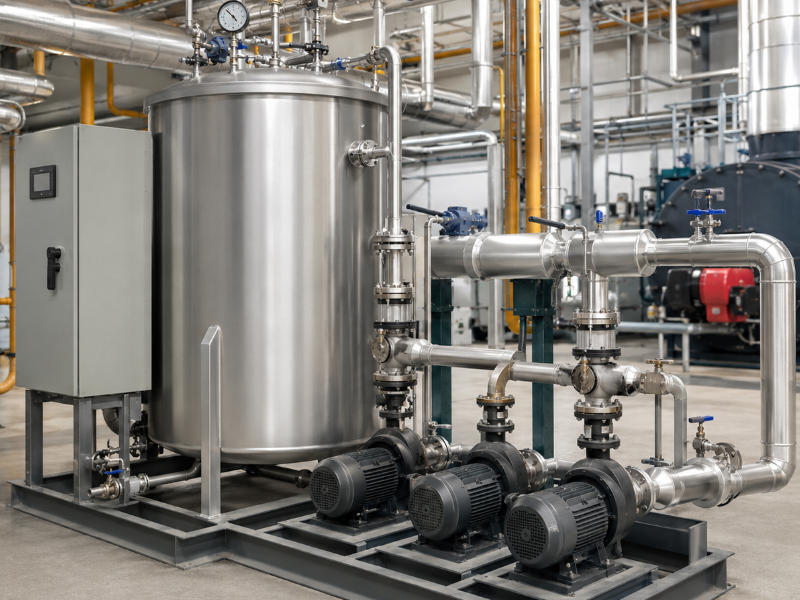

The system generally consists of a condensate tank, return pump, check valve, control system, and pipeline accessories. The condensate tank stores collected liquid, the pump provides transportation power, the check valve prevents backflow, and the control system ensures automated operation. All components work together to maintain stable system performance.
The pump is the core component of the system and should be regularly checked for vibration, noise, and temperature rise during operation. Abnormal vibration may indicate bearing wear or impeller imbalance, which should be addressed promptly to avoid further damage.
Lubrication condition directly affects pump service life. Lubricating oil should be replaced regularly, and its quality should be checked for emulsification or contamination. At the same time, mechanical seals or packing seals should be inspected for leakage to prevent air ingress that may reduce system efficiency.
Blocked pipelines or failed valves can significantly reduce condensate recovery efficiency. Routine checks should ensure that check valves operate smoothly without sticking, and internal pipeline deposits should be cleaned to maintain unobstructed flow.
Liquid level sensors and pressure switches must be calibrated regularly to avoid malfunction that may cause frequent pump start-stop cycles or failure to start. Electrical cabinet wiring should also be checked for looseness to prevent electrical failures.
This issue is often related to power supply, motor, or control system faults. First, check whether power supply is stable. Then verify if control signals are correctly triggered. If the motor overheats or cannot rotate, bearing seizure or winding failure may be present.
Low flow is usually caused by impeller wear, pipeline blockage, or air ingress. The inlet filter should be inspected for clogging, and system leakage points should be checked. Pump operating pressure should also be monitored to assess internal wear conditions.
Excessive vibration is often caused by mechanical imbalance or loose installation foundations. It may also result from bearing damage or misaligned couplings. A step-by-step inspection of the installation structure and rotating components is required.
This issue is usually caused by faulty liquid level control or sensor errors. It may also result from poor return flow causing unstable liquid levels. The controller settings and sensor sensitivity should be checked and recalibrated if necessary.
During the initial design stage, pump capacity (flow rate and head) should be properly selected based on actual condensate volume. This avoids oversizing or undersizing, improving operational stability from the source.
By installing temperature, pressure, and vibration monitoring modules, real-time system conditions can be tracked. Early warning functions help detect potential failures in advance and reduce unexpected shutdown risks.
A structured maintenance plan including daily, weekly, and monthly inspections should be implemented. Maintaining detailed maintenance records also helps analyze long-term operational trends.
Operator proficiency directly affects system performance. Regular training should be conducted to help operators understand basic fault diagnosis and emergency handling, reducing operational errors.
The condensate return pump system is a key component of industrial energy-saving systems. Its stable operation not only affects production efficiency but also directly impacts energy consumption costs. Through scientific maintenance practices, systematic fault diagnosis, and targeted optimization measures, equipment service life can be significantly extended while improving overall operational efficiency. In practical applications, enterprises should prioritize preventive maintenance as a core management strategy to achieve a more efficient and reliable energy recovery system.
