JD/KD Thread Connection Ductile Iron Floating Ball Manual Hot Static Steam Trap Water Control Gate Valves DN50 for Steam

JD/KD Thread Connection Ductile Iron Floating Ball Manual Hot Static Steam Trap Water Control Gate Valves DN50 for Steam

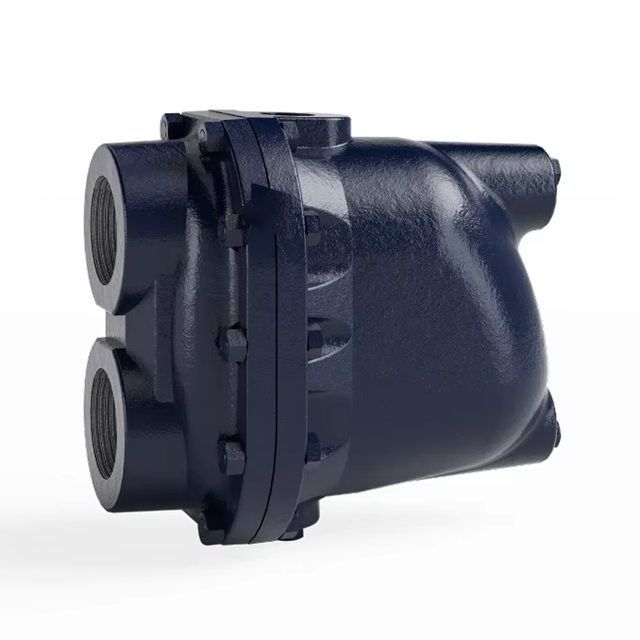

The JD & KD Series Ultra-Capacity Float & Thermostatic steam traps feature a simple yet rugged ductile iron body that ensures long, trouble-free service. All critical internal components—including floats, valves, seats, and lever mechanisms—are made from stainless steel for enhanced durability and reliable performance.

Quantity:
Material:	Ductile iron
Size:	DN50 DN60 DN65 DN80
connection:	Flanged Threaded
Availability:





Inquire Add to Basket

Model:
JD/KD
Brand:
Steam

Product Description

Technical Parameters

Company Description

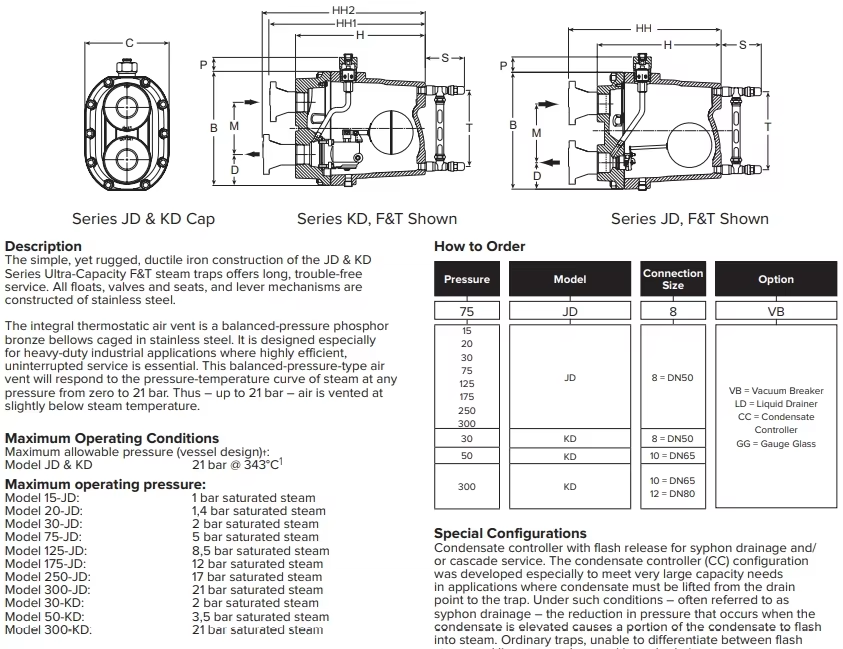

JD/KD floating ball steam trap

1.Equipped with a built-in thermal exhaust valve featuring a pressure-balanced phosphor copper corrugated tube, protected by a stainless steel housing.

2.Specifically designed for industrial applications that demand efficient and uninterrupted operation.

3.The pressure-balanced exhaust valve releases air and gas in accordance with the steam pressure-temperature curve, within a working range of 0 to 1.7 MPa (250 psig).

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

Inverted Bucket Steam Trap System Configuration Diagram

industrial system

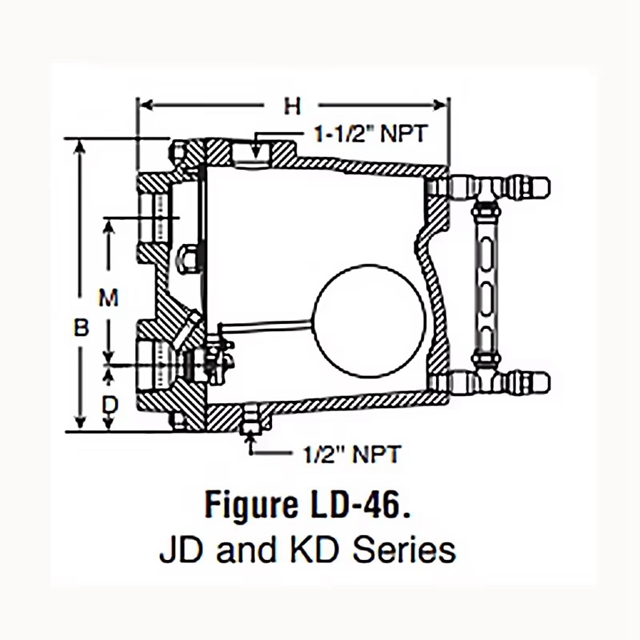

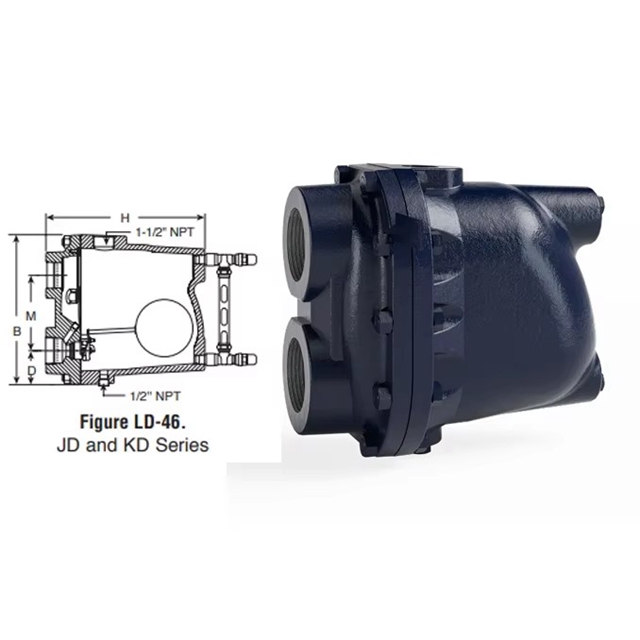

JD/KD floating ball steam trap

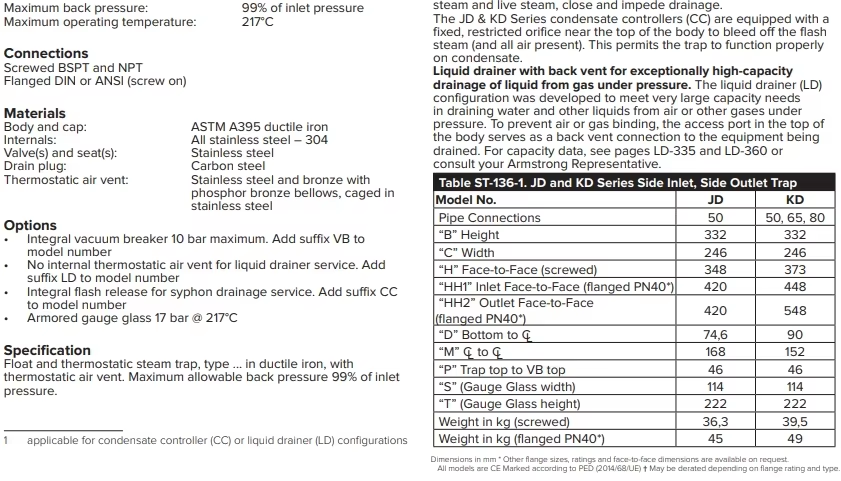

PRODUCT SPECIFICATIONS

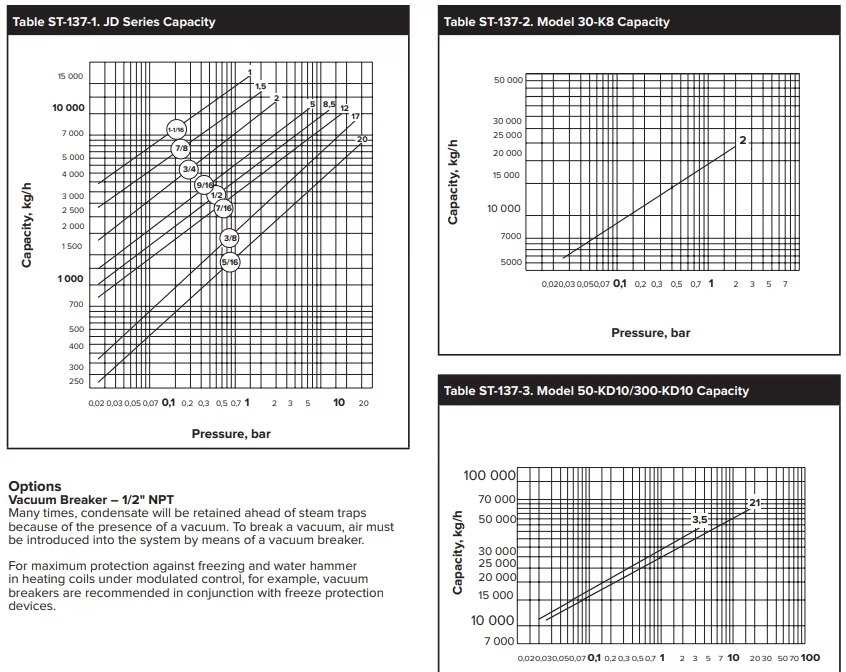

Model	Maximum Capacity	Maximum Allowable Pressure	Maximum Allowable Temperature	Maximum Operating Pressure (Saturated Steam)	Connection Size
15-JD	33,000 lb/hr (14,969 kg/hr)	300 psig (21 bar)	650°F (343°C)	15 psig (1 bar)	2″ (50 mm)
20-JD	27,000 lb/hr (12,247 kg/hr)	300 psig (21 bar)	650°F (343°C)	20 psig (1.4 bar)	2″ (50 mm)
30-JD	24,000 lb/hr (10,886 kg/hr)	300 psig (21 bar)	650°F (343°C)	30 psig (2 bar)	2″ (50 mm)
75-JD	21,000 lb/hr (9,525 kg/hr)	300 psig (21 bar)	650°F (343°C)	75 psig (5 bar)	2″ (50 mm)
125-JD	21,000 lb/hr (9,525 kg/hr)	300 psig (21 bar)	650°F (343°C)	125 psig (8.5 bar)	2″ (50 mm)
175-JD	20,000 lb/hr (9,072 kg/hr)	300 psig (21 bar)	650°F (343°C)	175 psig (12 bar)	2″ (50 mm)
250-JD	17,500 lb/hr (7,938 kg/hr)	300 psig (21 bar)	650°F (343°C)	250 psig (17 bar)	2″ (50 mm)
300-JD	13,300 lb/hr (6,033 kg/hr)	300 psig (21 bar)	650°F (343°C)	300 psig (21 bar)	2″ (50 mm)
30-KD	47,000 lb/hr (21,319 kg/hr)	300 psig (21 bar)	650°F (343°C)	30 psig (2 bar)	2-1/2″ (65 mm)
50-KD	103,000 lb/hr (46,720 kg/hr)	300 psig (21 bar)	650°F (343°C)	50 psig (3.5 bar)	2-1/2″ (65 mm)
300-KD	154,320 lb/hr (70,000 kg/hr)	300 psig (21 bar)	650°F (343°C)	300 psig (21 bar)	2-1/2″ (65 mm) 3″ (80 mm)
