FT43HS-IV Flanged Steam Trap Ductile Iron Body for Horizontal Mount Steam Pipeline

The FT43HS-IV Flanged Float Steam Trap is a compact, medium-capacity condensate drainage device tailored for industrial steam heating and condensate recovery systems. It utilizes a float-driven lever mechanism to automatically adjust the drain valve opening, ensuring rapid, timely, and continuous discharge of saturated condensate—even under fluctuating steam pressure—while preventing steam leakage and eliminating water accumulation in heating equipment.

Quantity:
Size:	DN32 DN40 DN50
Material:	WCB Ductile Iron SS304
Availability:





Inquire Add to Basket

Model:
FT43HS-IV

Product Description

Technical Parameters

Company Description

Description

1.This valve provides rapid, timely, and continuous discharge of saturated condensate, ensuring no water accumulation within the heating equipment and achieving maximum heating efficiency.

2.The valve core and seat sealing surfaces are made of cobalt-chromium-tungsten alloy, which is wear-resistant, corrosion-resistant, and durable.

3.A float-driven lever automatically adjusts the opening of the drain valve seat, ensuring continuous operation and stable performance despite fluctuations in steam pressure.

4.The X-series element automatically discharges non-condensable cold and hot gases, eliminating vapor lock and providing excellent non-condensable gas removal performance.

5.The valve seat is always below the condensate level, forming a water seal and preventing fresh steam leakage during operation.

6.Continuous condensate discharge with smooth water flow is particularly effective in applications requiring large-scale condensate removal and recovery systems.

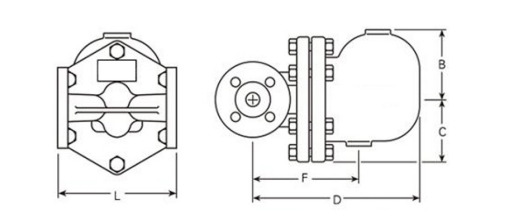

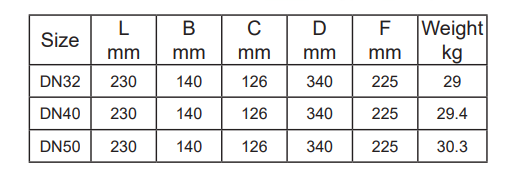

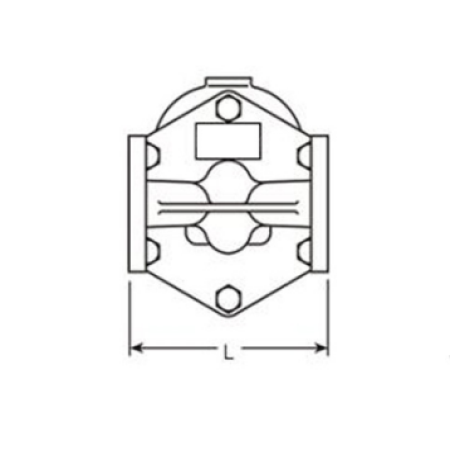

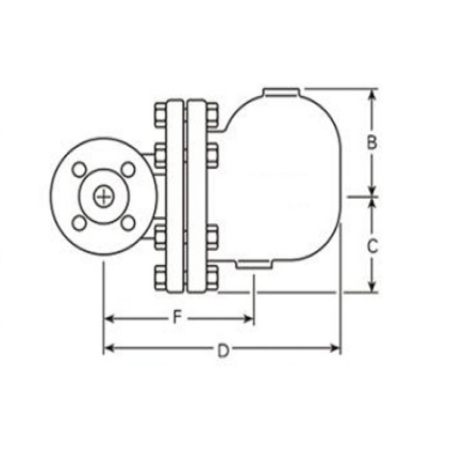

Dimensions

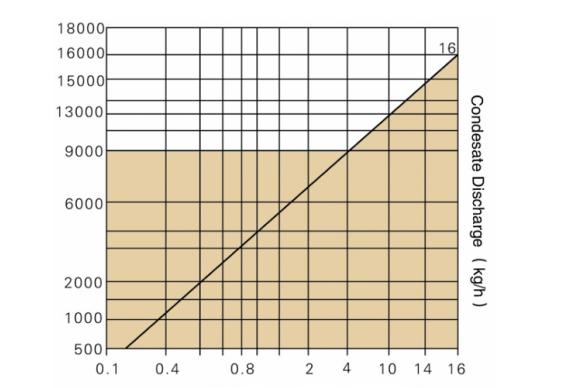

Displacement diagram

Fuchen Intelligent Equipment Co., Ltd. is located in Hangzhou, China, which has convenient transportation and beautiful environment.Wehave our own R & D and sales team. After years of solid exploration and precipitation from theory to practical application, our company has completed accurate research on the steam valve and equipment market, in-depth understanding of company product needs, digestion and absorption of steam valve design and manufacturing conceptsand established the long-term positioning of brand steam valves. Our company have only one goal: to carry for.ward the spirit of craftsmanship and produce excellent steam valves and equipment.

Factory Showcase

With the spirit of excellence and craftsmanship, we have won high praise from customerswith good services, excellent products, fast delivery, and competitive prices. The productsare exported to the United States, South America, Europe, South Africa, South Asia, andso on. We also welcome O E M and O D M orders. If you are interested in our steamvalves and equipment products, please feel free to contact us at any time.

Factory Equipment
