Pressure Gauges, Thermometers And Their Industrial Applications

Pressure gauges and thermometers are fundamental instruments in industrial systems because they provide operators with direct information about pressure and temperature. In steam, heating, HVAC, power, petrochemical, pharmaceutical, and food-processing systems, these measurements support equipment monitoring, process adjustment, troubleshooting, and preventive maintenance. Fuchen positions Instruments And Meters as part of its broader fluid control product portfolio, and its current product range includes stainless steel pressure gauges for steam boilers and high-temperature fluid applications.

For distributors, engineering contractors, OEMs, and industrial end users, selecting a pressure gauge or thermometer should go beyond dial size and purchase price. Measurement range, accuracy, material compatibility, connection method, installation environment, and operating conditions all influence whether an instrument can deliver useful and stable readings.

What Are Pressure Gauges and Thermometers?

A pressure gauge measures the pressure of a fluid or gas and converts mechanical pressure into a readable indication, commonly through a pointer and dial. In industrial piping, it can help operators verify upstream and downstream pressure, monitor equipment conditions, and identify abnormal pressure changes.

A thermometer is used to measure temperature within a process, pipe, vessel, or equipment. Depending on the design, industrial thermometers may use mechanical sensing elements or other measurement technologies. Their purpose is to provide a reliable indication of process temperature so operators can maintain suitable operating conditions.

Although these instruments are simple compared with automated control systems, they remain important because they give field personnel a direct reference point. A control valve, steam trap, heat exchanger, or boiler may perform correctly only when pressure and temperature stay within the intended range.

Why Are Pressure and Temperature Measurement Important?

Pressure and temperature often change together with process conditions. In steam systems, for example, pressure is closely related to steam saturation temperature. In heating systems, temperature measurement helps verify heat-transfer performance, while pressure readings help identify restrictions, pressure loss, or abnormal operating conditions.

Reliable instruments therefore support several practical objectives: maintaining process stability, protecting equipment, improving energy management, and detecting problems earlier. A sudden pressure increase can indicate a blocked line or control issue, while an unexpected temperature drop may point to insufficient heat transfer, low steam quality, or insulation problems.

For B2B buyers, the key point is that measurement accuracy should match the purpose of the application. The highest specification is not automatically the best choice. Fuchen's instrument selection guidance likewise emphasizes matching accuracy, measuring range, material, connection, and process conditions instead of selecting only by price.

Where Are Pressure Gauges and Thermometers Used?

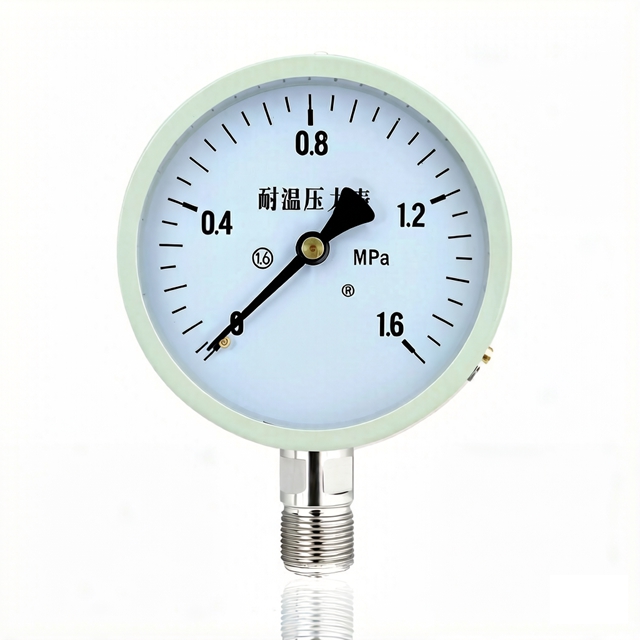

These instruments are used across a wide range of industrial systems. In steam and boiler applications, pressure gauges can monitor boiler pipes, steam headers, and heating equipment. Fuchen offers stainless steel industrial pressure gauges designed for steam, water, oil, air, and non-corrosive gases, with applications including electric power and heating, petrochemical, pharmaceutical, food and beverage, and building-related systems.

In HVAC applications, pressure instruments can be used to monitor system pressure, while thermometers help operators check water or other heat-transfer medium temperatures. In process industries, both instruments can provide local measurements around pumps, heat exchangers, valves, tanks, and pipelines.

For equipment manufacturers and system integrators, the correct instrument location is also important. Installing a gauge where operators can read it easily can simplify routine inspection. At the same time, the measurement point should represent the actual process condition rather than a location affected by unusual pressure or temperature losses.

How to Select the Right Pressure Gauge

The first consideration is the pressure range. Buyers should identify the normal operating pressure and consider fluctuations, startup conditions, shutdown conditions, and possible peaks. A range that is too narrow may expose the gauge to overload, while an excessively large range can make normal readings harder to interpret.

Accuracy is another important factor. A high-accuracy gauge may be appropriate for control, calibration, or demanding process applications, while a more general industrial application may not require the highest accuracy class.

Material and connection requirements should also be confirmed. Stainless steel construction can be advantageous in corrosive, humid, or demanding industrial environments. The connection thread, mounting arrangement, dial size, and pressure unit should match the piping and installation requirements.

How to Select an Industrial Thermometer

Thermometer selection should start with the actual temperature range. Buyers need to distinguish between normal process temperature and the maximum or minimum conditions the instrument may encounter.

The measuring method and response requirement are also important. Some applications prioritize simple local indication, while others require faster response or integration with a control system. Process medium, installation position, stem or sensing length, connection, and material should be checked before ordering.

For high-temperature applications, the instrument must be suitable for the thermal conditions at the measurement point. Incorrect selection can shorten service life or produce unreliable readings. As with pressure gauges, the thermometer should be specified according to actual process requirements rather than using one standard model for every application.

Maintenance and Calibration Considerations

Routine inspection helps preserve measurement reliability. Operators should check the dial, pointer, housing, connection, and sensing components for visible damage, corrosion, leakage, or abnormal readings. Instruments exposed to vibration, pulsation, temperature changes, or aggressive environments may require closer monitoring.

Calibration requirements depend on the instrument, application, internal quality procedures, and applicable regulations. When readings are suspected to be inaccurate, the instrument should be verified using an appropriate reference or calibration procedure. A maintenance record should document inspection dates, abnormal findings, calibration information, and replacement history.

For distributors and OEM buyers, stable product quality and technical documentation are particularly important because instruments may be supplied repeatedly across multiple projects.

Why Choose a Professional Industrial Instrument Supplier?

A qualified supplier should do more than provide a catalog number. Buyers may need help confirming the measurement range, accuracy, material, connection, installation requirements, and suitable application. Clear specifications reduce the risk of receiving instruments that cannot work correctly under actual operating conditions.

Fuchen combines instruments and meters with a broader portfolio covering steam valves, regulating valves, condensate equipment, heat exchange systems, and other fluid control products. Its pressure gauge products include stainless steel models with options for different pressure ranges, units, dial sizes, connection types, and OEM branding, while the company also provides technical consultation, customized system design, installation guidance, and after-sales support.

For industrial procurement teams, engineering companies, and distributors, pressure gauges and thermometers should be treated as important parts of the measurement and fluid-control system rather than simple accessories. By matching accuracy, range, material, connection, and application conditions, buyers can improve measurement reliability, reduce maintenance risks, and support more stable industrial operations. A capable supplier can further simplify procurement by providing technical matching, documentation, and customized options for different projects.
