In boiler plants and industrial steam systems, steam is not always completely dry. Boiler evaporation, pipeline heat loss, pressure changes, and boiler-water carryover can introduce fine water droplets into the steam, producing what is known as wet steam.
When wet steam enters heat exchangers, control valves, flowmeters, or process equipment, it can reduce heat-transfer efficiency and cause erosion, corrosion, measurement fluctuations, and water hammer. A steam-water separator is designed to remove this entrained moisture and improve the quality of the steam supplied to downstream equipment.

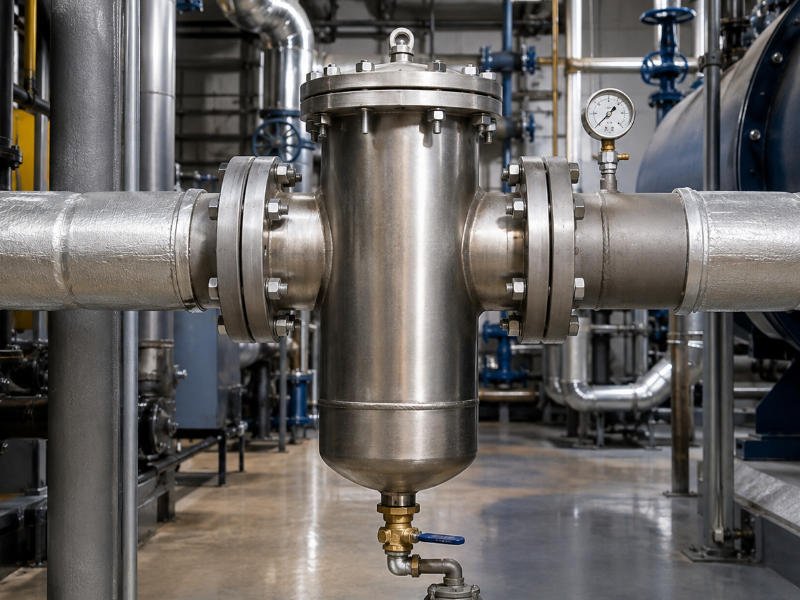

A steam-water separator, also known as a steam separator or moisture separator, is a mechanical device installed in a steam pipeline. Its primary function is to separate suspended water droplets and some liquid contaminants from flowing steam.
It does not normally rely on an external power source. Instead, it uses the differences in density, mass, inertia, and flow behavior between steam and liquid water to achieve separation.
Although condensate drain points can remove water collected at the bottom of a steam pipe, they may not effectively capture the small droplets suspended in the steam flow. A steam-water separator is specifically designed to remove this entrained moisture.
Its main functions include:
Increasing the dryness of steam entering process equipment.
Reducing erosion of valve seats, valve trims, elbows, and pipe fittings.
Lowering the risk of water hammer caused by condensate accumulation.
Stabilizing the flow conditions upstream of steam flowmeters.
Reducing the formation of water films on heat-transfer surfaces.
Protecting pressure-reducing valves, control valves, and other sensitive equipment.
Helping maintain consistent process temperatures and product quality.
A steam-water separator should not be confused with a steam trap. The separator removes water droplets from the steam flow, while the steam trap discharges the collected condensate without allowing significant quantities of live steam to escape. In most installations, the two devices must work together.
Steam begins losing heat as soon as it leaves the boiler. Even a well-insulated pipe transfers some heat to the surrounding environment. As the steam loses latent heat, part of it condenses into water.
This condensate may flow along the bottom or inner wall of the pipeline. High-velocity steam can then pick up the water and break it into droplets, carrying them farther downstream.
Additional moisture can enter the steam system because of:
Boiler-water priming or carryover;
Rapid changes in boiler load;
Inadequate boiler-water treatment;
Damaged or insufficient pipeline insulation;
Improper pipe slope;
Insufficient condensate drainage;
Undersized steam pipes and excessive velocity;
Poor warm-up procedures during system startup.
A separator can remove entrained water, but it cannot correct all of these underlying system problems. Effective moisture control requires proper boiler operation, pipeline design, insulation, drainage, and steam trapping.
Steam and water droplets may travel through the same pipe, but they do not respond identically when the direction or velocity of the flow changes. Water is much denser than steam and has greater inertia. A separator takes advantage of this difference.
Depending on its internal structure, the separator may use inertial impaction, centrifugal force, gravity, coalescence, or a combination of these mechanisms.
In a baffle-type separator, wet steam passes through a series of baffles or vanes. These components force the steam to change direction repeatedly.
The gaseous steam can follow the changing flow path relatively easily. Heavier water droplets, however, cannot change direction as quickly because of their greater inertia. They strike the baffle surfaces and lose kinetic energy.
The captured droplets form a water film on the baffles. Gravity then causes the water to flow into a collection chamber at the bottom of the separator, from which it is discharged through a steam trap.
The relatively large internal cross-sectional area of some baffle-type separators also reduces steam velocity, making it more difficult for the steam to re-entrain the separated water.
A cyclonic or centrifugal steam separator uses guide vanes or a specially designed inlet to create a rotating steam flow.
As the steam spins inside the separator, the heavier water droplets are subjected to centrifugal force and move toward the outer wall. After striking the wall, they lose momentum and flow downward into the condensate collection area.
The drier steam moves toward the outlet and continues into the downstream pipeline. Cyclonic separators can provide effective separation when the operating velocity remains within the intended design range.
However, if the flow rate is too low, the rotational force may be insufficient. If the flow rate is too high, pressure loss, turbulence, and water re-entrainment may increase.
A coalescing separator contains a wire mesh, demister pad, fibrous medium, or another porous internal element. Fine water droplets are captured when they contact the surface of the element.
The captured droplets combine, or coalesce, into larger droplets. Once these droplets become too heavy to remain suspended in the steam flow, they fall into the bottom of the separator.
Coalescing structures can be useful when fine mist must be removed. However, the internal element must be inspected and maintained because rust, scale, oil, or other contaminants can cause blockage and increase pressure drop.
Some industrial steam separators combine baffles, cyclonic flow, and coalescing elements. The purpose is to remove droplets across a wider range of particle sizes and operating conditions.
The suitability of a combined design depends on the required steam quality, expected contamination, allowable pressure drop, and maintenance conditions.
Separator type | Main separation mechanism | Main advantages | Points to consider | Typical applications |
Baffle separator | Inertial impaction and directional changes | Reliable structure, relatively low pressure drop, good tolerance of flow variation | Baffles and drain chamber should be checked for erosion and blockage | Steam mains and equipment inlets |
Cyclonic separator | Centrifugal force | Compact design and effective separation under suitable flow conditions | Performance depends on steam velocity and stable flow | Steam lines with relatively consistent loads |
Coalescing separator | Droplet capture and coalescence | Effective removal of fine moisture droplets | Internal elements may become contaminated or blocked | Processes requiring relatively dry steam |
Combined separator | Inertia, centrifugal force, and coalescence | Can handle a wider range of droplet sizes | More complex construction and maintenance | Critical process-steam applications |
Separation efficiency can be expressed as:
η = (m_water removed / m_entrained water at inlet) × 100%
Where:
η is the separation efficiency;
m_water removed is the mass of water collected by the separator;
m_entrained water at inlet is the mass of liquid water entering with the steam.
Suppose the inlet steam flow is 1,000 kilograms per hour and the steam dryness fraction is 0.95. The flow contains approximately 950 kilograms of dry saturated steam and 50 kilograms of liquid water.
If the separator removes 90% of the entrained water, approximately 45 kilograms of water will be discharged, leaving about 5 kilograms in the outlet flow. The outlet steam condition is therefore significantly improved.
Actual performance depends on several variables:
Inlet steam dryness;
Droplet size distribution;
Steam pressure and temperature;
Minimum, normal, and maximum flow rates;
Steam velocity;
Flow pattern at the inlet;
Separator geometry;
Condensate discharge capacity;
Downstream backpressure;
Condition of internal components.
For critical applications, a separator should not be selected solely according to the nominal pipeline diameter.
Steam separators are commonly installed:
Near the boiler steam outlet;
At the beginning of a main steam distribution line;
Where an outdoor steam main enters a production building;
Upstream of pressure-reducing valves;
Upstream of control valves and steam flowmeters;
Before heat exchangers and process equipment requiring dry steam;
Near locations where large quantities of condensate are likely to form.
The separator must be installed according to the manufacturer’s specified flow direction and orientation. The condensate outlet should normally point downward and be connected to a correctly sized steam trap station.
The drain line should not contain unnecessary restrictions or elevated sections that prevent gravity drainage. A strainer may be installed upstream of the steam trap where appropriate, and isolation valves should be arranged to allow safe inspection and maintenance.
If the steam trap is blocked, undersized, incorrectly installed, or exposed to excessive backpressure, condensate can accumulate inside the separator. The collected water may then be carried back into the steam flow, reducing separation performance and increasing the risk of water hammer.
Selection parameter | Information to confirm | Possible result of incorrect selection |
Steam pressure | Normal and maximum operating pressure | Insufficient pressure rating or reduced separation performance |
Steam flow rate | Minimum, normal, and maximum mass flow | Velocity may be too low or too high |
Pipe size | Nominal diameter and connection standard | Installation mismatch or excessive resistance |
Steam temperature | Saturated or superheated steam temperature | Material or sealing failure |
Allowable pressure drop | Minimum pressure required downstream | Inadequate steam supply to process equipment |
Separation requirement | Inlet moisture and required outlet quality | Steam may remain too wet for the process |
Drainage capacity | Startup and normal condensate loads | Flooding and water re-entrainment |
Construction material | Carbon steel, stainless steel, or special alloy | Corrosion, contamination, or shortened service life |
The steam trap connected to the separator should be sized for both normal condensate formation and the higher condensate load that can occur during startup. An adequate safety factor may be required, but excessive oversizing should also be avoided.
Although many steam-water separators contain no moving parts, they still require periodic inspection.
Maintenance personnel should check:
Steam trap operation;
Strainer contamination;
Condensate discharge condition;
Pressure drop across the separator;
Internal erosion or corrosion;
External leakage;
Abnormal noise and vibration;
Condition of coalescing elements;
Insulation and pipe supports.
If wet steam continues to appear downstream, the investigation should include the boiler, steam-main velocity, insulation condition, pipeline slope, drainage points, and condensate backpressure. Replacing the separator alone may not solve a system-wide problem.
A steam-water separator uses inertia, centrifugal force, coalescence, gravity, or a combination of these mechanisms to remove suspended water droplets from steam. It can improve steam dryness, stabilize heat-transfer performance, protect control equipment, and reduce erosion and water-hammer risks.
Reliable performance depends not only on the separator itself but also on correct sizing, installation, steam trapping, pipeline drainage, insulation, and boiler operation. A separator should therefore be treated as one component of a complete steam-quality management system.
