Steam Piping Design Standards And Specifications: A Practical Guide

Steam piping is a critical part of industrial heating and process systems. It connects boilers or steam generators with production equipment, heat exchangers, sterilization systems, heating units, and other steam-consuming equipment. Because steam combines high temperature with pressure, poor piping design can lead to heat loss, water hammer, excessive stress, leakage, unstable pressure, and shortened equipment life.

For industrial users, EPC contractors, system integrators, and equipment buyers, steam piping design should therefore be based on applicable codes, actual operating conditions, and sound engineering practices. Standards provide the framework, while project-specific calculations determine the appropriate pipe size, materials, supports, valves, drainage arrangements, and instrumentation.

Which Standards Apply to Steam Piping?

There is no single global standard that applies to every steam piping project. The applicable code depends on the industry, installation location, system classification, pressure level, and local regulations.

For power and industrial plant piping, ASME B31.1 Power Piping is an important reference. ASME states that B31.1 covers design, materials, fabrication, erection, testing, inspection, operation, and maintenance of power piping systems, including systems typically found in power generation, industrial plants, and heating systems.

ASME B31.3 Process Piping may be applicable when steam piping forms part of a process plant covered by its scope. ASME identifies B31.1 and B31.3 as separate piping codes addressing power piping and process piping respectively.

For European projects, EN 13480 is an important series for metallic industrial piping. The 2024 edition covers industrial piping systems and supports and includes dedicated parts addressing materials, design and calculation, fabrication and installation, inspection and testing, and related requirements.

For petroleum and natural gas facilities, ISO 15649 specifies requirements for piping design and construction, including inspection and testing, within applicable processing and handling facilities.

The selected code should never be determined by product preference alone. Project specifications, local pressure-equipment regulations, and applicable authority requirements must also be checked.

What Are the Key Steam Piping Design Conditions?

Before selecting pipe and components, engineers normally establish the design pressure, design temperature, operating pressure, operating temperature, steam flow rate, steam quality, and expected load conditions. These parameters directly affect pipe wall thickness, material selection, flange ratings, valve specifications, insulation, and safety requirements.

Steam pressure and temperature should be considered under both normal and abnormal operating conditions. Startup, shutdown, pressure fluctuations, and potential high-temperature conditions may create loads that are not visible during steady-state operation.

Pipe sizing is also important. An undersized pipe can create excessive pressure drop and high velocity, while an oversized pipe may increase project cost, surface heat loss, and installation requirements. The appropriate size should therefore be calculated from required steam flow, pressure drop, velocity limits, and downstream equipment requirements.

Why Are Slope and Condensate Drainage Important?

One of the most important principles in steam piping system design is controlling condensate. Steam naturally loses heat as it travels through the piping, causing part of the steam to condense. If condensate accumulates in the main, high-velocity steam can carry it through the pipe and contribute to water hammer, erosion, and unstable operation.

Steam mains should therefore be arranged to promote proper drainage. Drain points and steam traps are normally required at appropriate locations, particularly where condensate can collect. Branch connections should also be arranged to reduce the risk of carrying accumulated condensate into downstream equipment.

Drainage should be considered together with the steam trap, isolation valve, strainer, check valve, and condensate return arrangement rather than treating the trap as an isolated component.

How Should Steam Piping Handle Thermal Expansion?

Steam pipes experience significant temperature changes between shutdown and operation. As metal heats, it expands. If the piping system cannot accommodate this movement, thermal loads may be transferred to pipe joints, valves, equipment nozzles, and supports.

Designers therefore need to consider pipe flexibility, support arrangement, guides, anchors, expansion loops, and other appropriate methods. ASME B31.1 design guidance specifically includes adequate piping flexibility, stress intensification, pipe support design, and analysis of loading conditions.

The objective is not simply to prevent the pipe from moving. Instead, the system should allow controlled thermal movement while keeping stress within acceptable limits and protecting connected equipment.

What About Steam Pipe Insulation?

Insulation is another important part of industrial steam piping design. Without appropriate insulation, heat can escape from the pipe surface, increasing energy consumption and reducing steam temperature before it reaches the user.

Insulation also helps limit exposed surface temperatures and improve operator safety. The appropriate insulation system depends on steam temperature, environmental conditions, required energy performance, mechanical protection, and project specifications.

For procurement teams, insulation should be included in the overall piping specification rather than considered only after pipe installation. Insulation thickness, outer covering, fittings, valves, and removable insulation sections may all need to be coordinated.

How Should Valves and Instruments Be Integrated?

Steam piping requires suitable valves and measurement devices for isolation, pressure regulation, flow control, drainage, and monitoring. Globe valves, control valves, check valves, safety valves, pressure gauges, and thermometers may all have roles depending on the system design.

Valve selection should consider pressure class, temperature, connection standard, body material, sealing material, flow characteristics, and maintenance requirements. Instruments should also have suitable measuring ranges and materials for the operating environment.

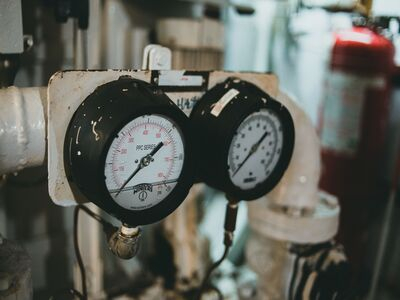

For example, a pressure gauge installed near a steam control station can provide a local indication of system pressure, while temperature measurement can help operators evaluate steam and heat-transfer conditions. Proper placement is important because a technically suitable instrument can still provide poor information if installed at an inappropriate measurement point.

What Should B2B Buyers Check Before Ordering?

For industrial procurement, a steam piping project should be reviewed as an integrated system. Buying pipes, valves, steam traps, gauges, and fittings from unrelated specifications can create compatibility problems during installation.

Before ordering, buyers should confirm the applicable design code, pressure and temperature ratings, pipe material, dimensions, flange or thread standards, valve specifications, steam trap capacity, insulation requirements, testing requirements, and documentation.

Choose a Steam System Supplier With Engineering Capability

A reliable steam system supplier should understand more than individual products. For industrial projects, suppliers may need to coordinate steam valves, steam traps, condensate recovery equipment, heat exchange systems, instruments, and other components according to project requirements.

Fuchen provides steam system and fluid control solutions covering steam traps, condensate return pump systems, regulating valves, instruments and meters, heat exchange systems, and other industrial valve products. This broader product scope allows buyers to approach steam piping and fluid control from a system perspective rather than selecting isolated components.

Ultimately, steam piping standards provide the technical framework, but successful system design depends on how those requirements are translated into pipe sizing, drainage, flexibility, insulation, valve selection, and instrumentation. For international projects, the applicable code and local regulations should always be confirmed before design and procurement. Working with a supplier that can provide suitable products, technical documentation, configuration support, and project-oriented service can help industrial buyers build a safer, more reliable, and more efficient steam system.
