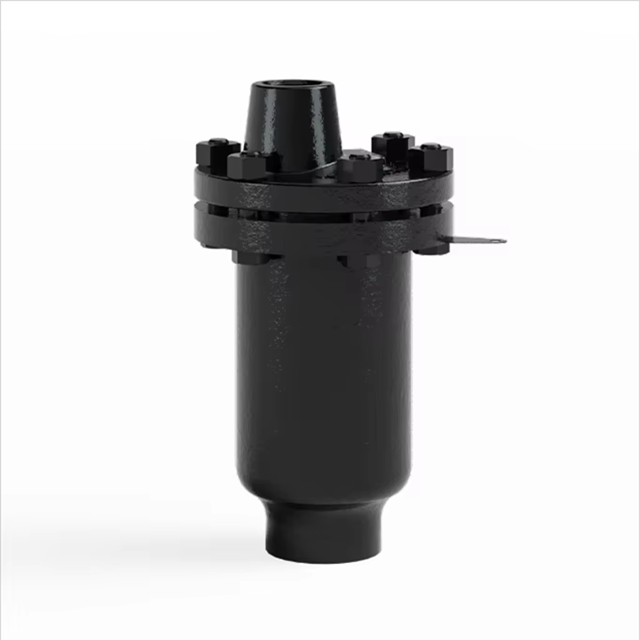

300 Series Forged Steel Steam Mains Inverted Bucket Steam Trap

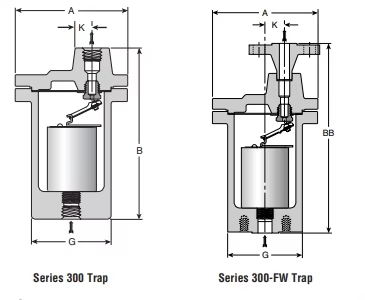

The 300 Series forged steel inverted bucket steam trap is available with multiple connection options, including threaded, socket weld, or flanged connections, and is designed for vertical installation. Its unique lever mechanism amplifies the force generated by the weight of the inverted bucket, enabling the valve disc to open against system pressure differentials. The lever mechanism operates in a free-floating manner, eliminating wear caused by fixed pivot points.
300series matched with a special lever system uses the weight of the inverted bucket to help open the valve, even when there is pressure in the system. The lever moves freely and has no fixed parts that can wear out or cause friction.
Because the moving parts are at the top of the trap, dirt cannot settle on the opening. Any small dirt particles stay suspended in the water until they are flushed out when the bucket drops down and pulls the valve away from its seat.
The outlet is covered by a water seal, which stops live steam from escaping. Air is released automatically through a small hole in the bucket, removing air and CO₂ while the trap is operating.
This type of trap keeps draining condensate all the time, even though it only releases it in bursts. This prevents condensate from building up. It also stands up well to water hammer.
Application Scenarios
Hotels& Buildings
Electric Power & Heating Station
Petroleum and Chemical
Bio-Tech & Pharmaceuticals
Food and Beverages
Medical & Health
Inverted Bucket Steam Trap System Configuration Diagram
Fuchen Intelligent Equipment Co., Ltd. is located in Hangzhou, China, which has convenient transportation and beautiful environment.Wehave our own R & D and sales team. After years of solid exploration and precipitation from theory to practical application, our company has completed accurate research on the steam valve and equipment market, in-depth understanding of company product needs, digestion and absorption of steam valve design and manufacturing conceptsand established the long-term positioning of brand steam valves. Our company have only one goal: to carry for.ward the spirit of craftsmanship and produce excellent steam valves and equipment.
With the spirit of excellence and craftsmanship, we have won high praise from customerswith good services, excellent products, fast delivery, and competitive prices. The productsare exported to the United States, South America, Europe, South Africa, South Asia, andso on. We also welcome O E M and O D M orders. If you are interested in our steamvalves and equipment products, please feel free to contact us at any time.
Factory Equipment
Plate Rolling Machine
Welding
Paint Room
Touch-up Painting
Shot Blasting Machine
Lathe
CNC lathe
Drilling
Radial Drill
FAQs
Who we are?
Fuchen Intelligent Equipment (Hangzhou) Co., Ltd is a trusted provider of high-quality valves and freeze-dryers. With a commitment to excellence, we cater to diverse industries, offering a comprehensive range of products that meet the highest industry standards.
Are you trading company or factory?
We are factory with trading company.
Why should we choose your company over others?
1. Our team of experts carefully evaluates and tests each product to guarantee its quality, functionality, and longevity. 2. With years of experience in the valves and freeze dryer industry, our team possesses in-depth knowledge and expertise. We understand the unique challenges and requirements of various sectors, and we leverage our industry insights to provide tailored solutions. 3.We understand the importance of timely delivery and efficient service. Our streamlined processes and reliable logistics network enable us to fulfill orders promptly, ensuring that your operations remain uninterrupted. 4.We understand the importance of timely delivery and efficient service. Our streamlined processes and reliable logistics network enable us to fulfill orders promptly, ensuring that your operations remain uninterrupted.
Do you provide samples? Is it free?
Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Can you provide customized services？
We can customize different colors, LOGO and so on according to customer's requirements.
What’s the MOQ for each item?
If we have enough stock for the items,we can accept the quantity as customer’s request,if not,different items have different MOQ.
Do you test all your goods before delivery?
Yes,we have test equipment and team,and we test all products before shipment.
