OEM Steam Equipment 401SH/501SH Inverted Bucket Steam Trap with Flange Connection

Available in carbon steel or stainless steel and designed for vertical mounting, Models 401‑SH and 501‑SH are engineered to handle the demanding conditions of superheated steam combined with high pressure and low condensate loads.

Quantity:
Material:	carbon steel stainless
Size:	DN15 DN20
connection:	Flange Screw Socket welding
Availability:





Inquire Add to Basket

Model:
401-SH/501-SH
Brand:
Steam

Product Description

Technical Parameters

Company Description

401sh

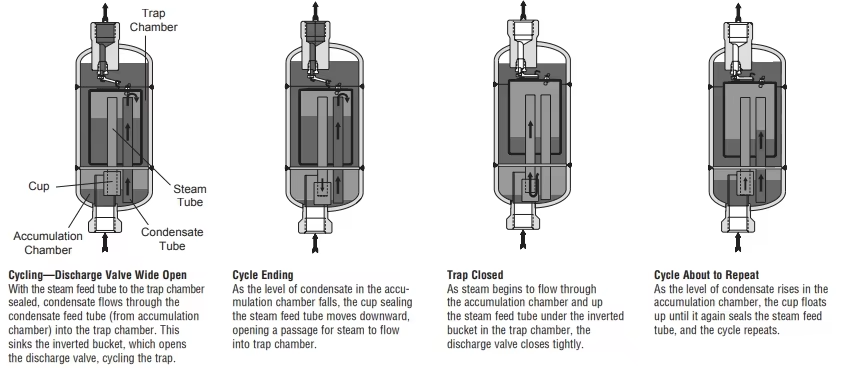

To meet the demands of the most severe steam service conditions, we developed an inverted bucket steam trap featuring a specially designed accumulation chamber. This chamber gathers enough condensate to guarantee complete discharge cycles every time. Inside the chamber, a buoyant cup moves vertically along the steam inlet tube, sealing it off as the condensate level rises.

While the chamber collects condensate, steam continues to flow beneath the inverted bucket, ensuring the discharge valve remains fully closed until condensate fills the trap body and causes the bucket to descend. The trap operates in an on/off manner—there is no throttling or dripping—delivering sharp, efficient cycling. In addition, it retains all the proven advantages of traditional inverted bucket steam traps, including durability, reliability, and resistance to water hammer.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

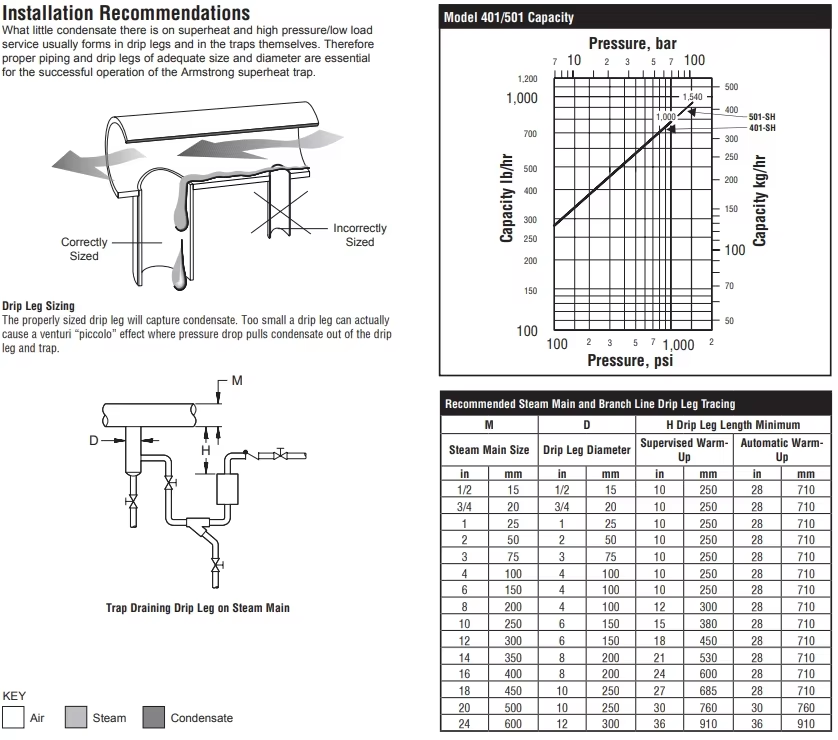

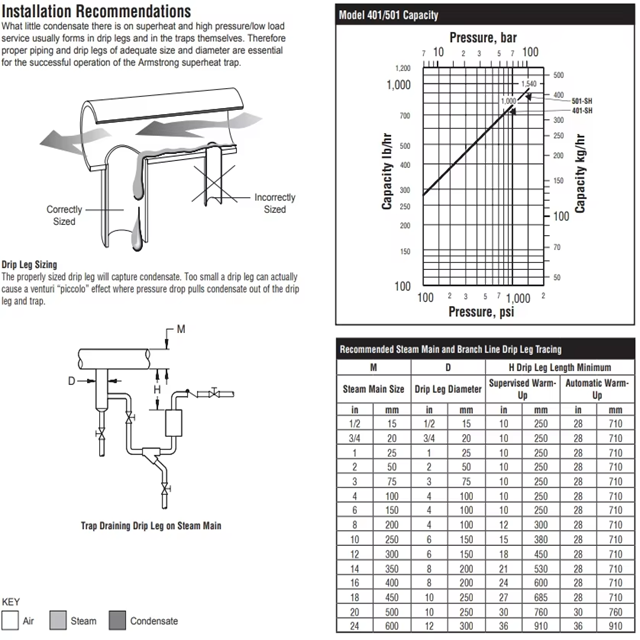

Inverted Bucket Steam Trap System Configuration Diagram

industrial system

Model	401-SH	501-SH

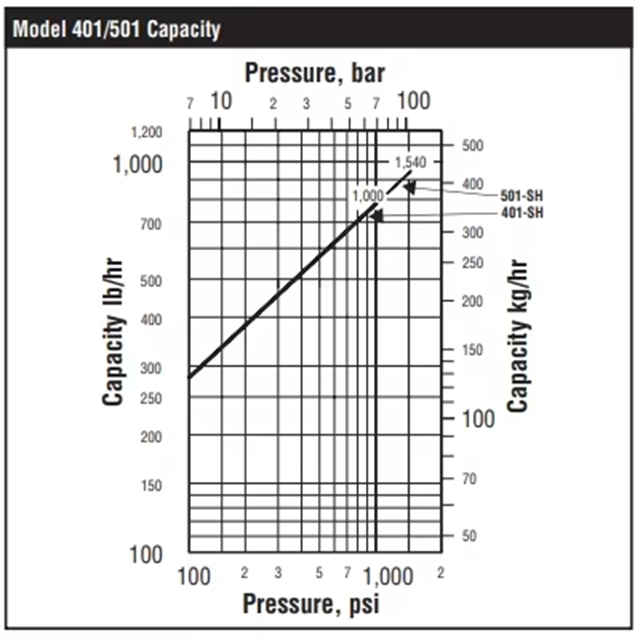

Capacities	349 kg/hr(770 lb/hr)	432 kg/hr(950 lb/hr)

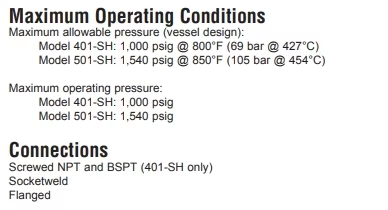

Maximum Allowable Pressure	69 bar(1000 psig)	105 bar(1540 psig)
Maximum Allowable Temperature	427°C(800°F)	454°C(850°F)

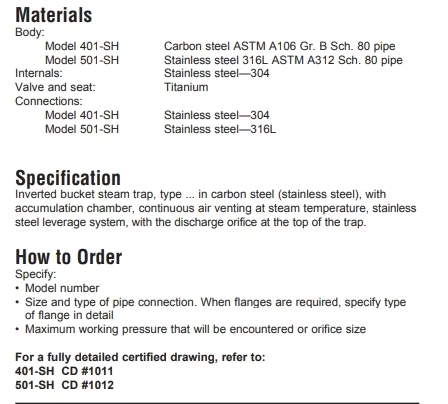

Body Material	Carbon Steel ASTM A106 GR. B	316L Stainless Steel ASTM A312
Maximum Operating Pressure	69 bar (1000 psig)	105 bar (1540 psig)
Connection Type	Screwed, Socketweld, Flanged	Socketweld Flanged
Connection Size	1/2″ (15 mm) 3/4″ (20 mm)	1/2″ (15 mm) 3/4″ (20 mm)
Flow Direction	Vertical	Vertical
