Supply for 1000 Series Stainless Steel Manual Power Steam Trap Valve Inverted Bucket Drain Valve for Steam System Management

Supply for 1000 Series Stainless Steel Manual Power Steam Trap Valve Inverted Bucket Drain Valve for Steam System Management

Under identical operating conditions, the 1000 Series stainless steel inverted bucket steam trap typically delivers a service life that is 3–4 times longer than conventional steam traps. Its design incorporates heat-treated stainless steel discs and seats, which are engineered to withstand pressures of up to 900 psig (62 bar) and temperatures reaching 900°F (482°C). This makes the 1000 Series ideal for demanding applications where durability and performance are critical.

Quantity:
Material:	Stainless
Size:	DN15 DN20 DN25
connection:	NPT/BSPT Socket welding
Availability:





Inquire Add to Basket

Model:
1010/1011/1022/1013
Brand:
Steam

Product Description

Technical Parameters

Company Description

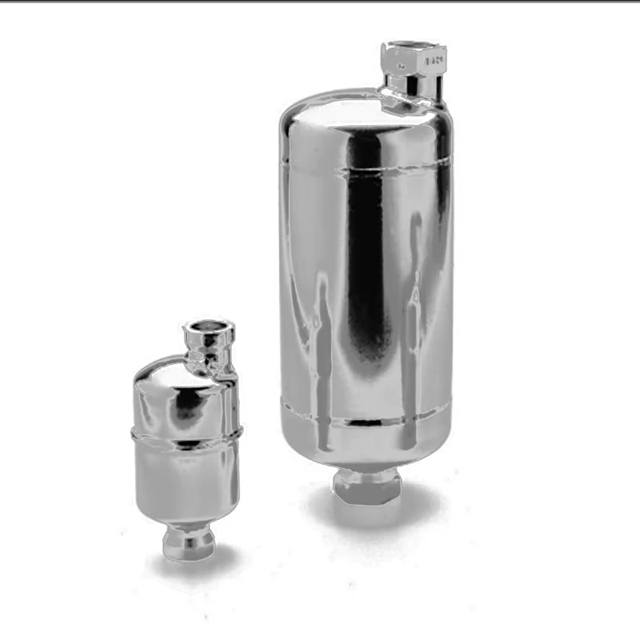

1000series 1.Under the same operating conditions, the 1000 Series stainless steel,inverted bucket steam trap typically offers a service life 3–4 times longerthan that of traditional steam traps, ensuring greater reliability and reduced maintenance costs.

2.Featuring heat-treated stainless steel discs and seats, the 1000 Series is built to handle pressures up to 900 psig (62 bar) and temperatures up to 900°F (482°C), matching the performance requirements of even the most demanding industrial environments.

3.With a more compact design compared to cast iron and carbon steel models, the 1000 Series is ideally suited for space-sensitive applications, including heating lines, steam mains, process equipment, and other steam system installations.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

Inverted Bucket Steam Trap System Configuration Diagram

industrial system

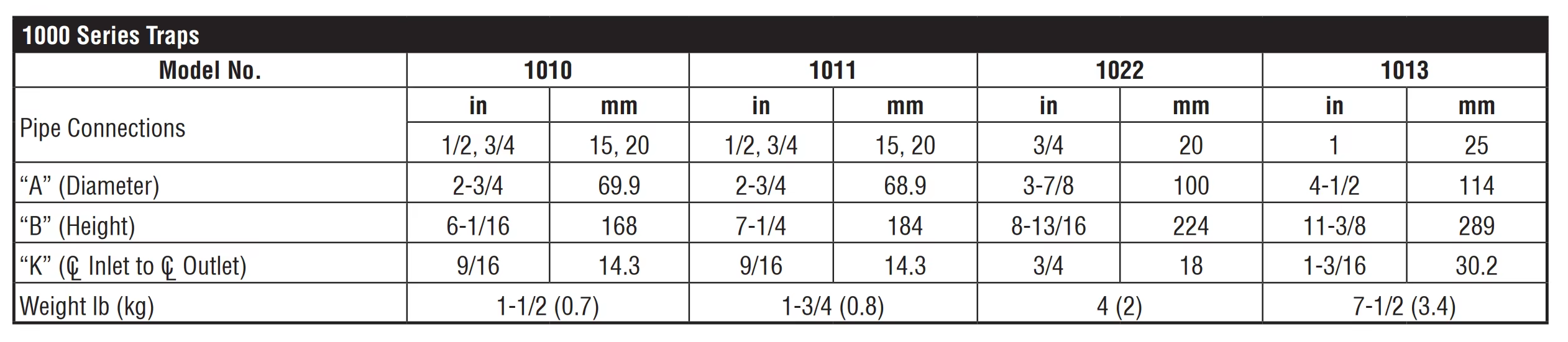

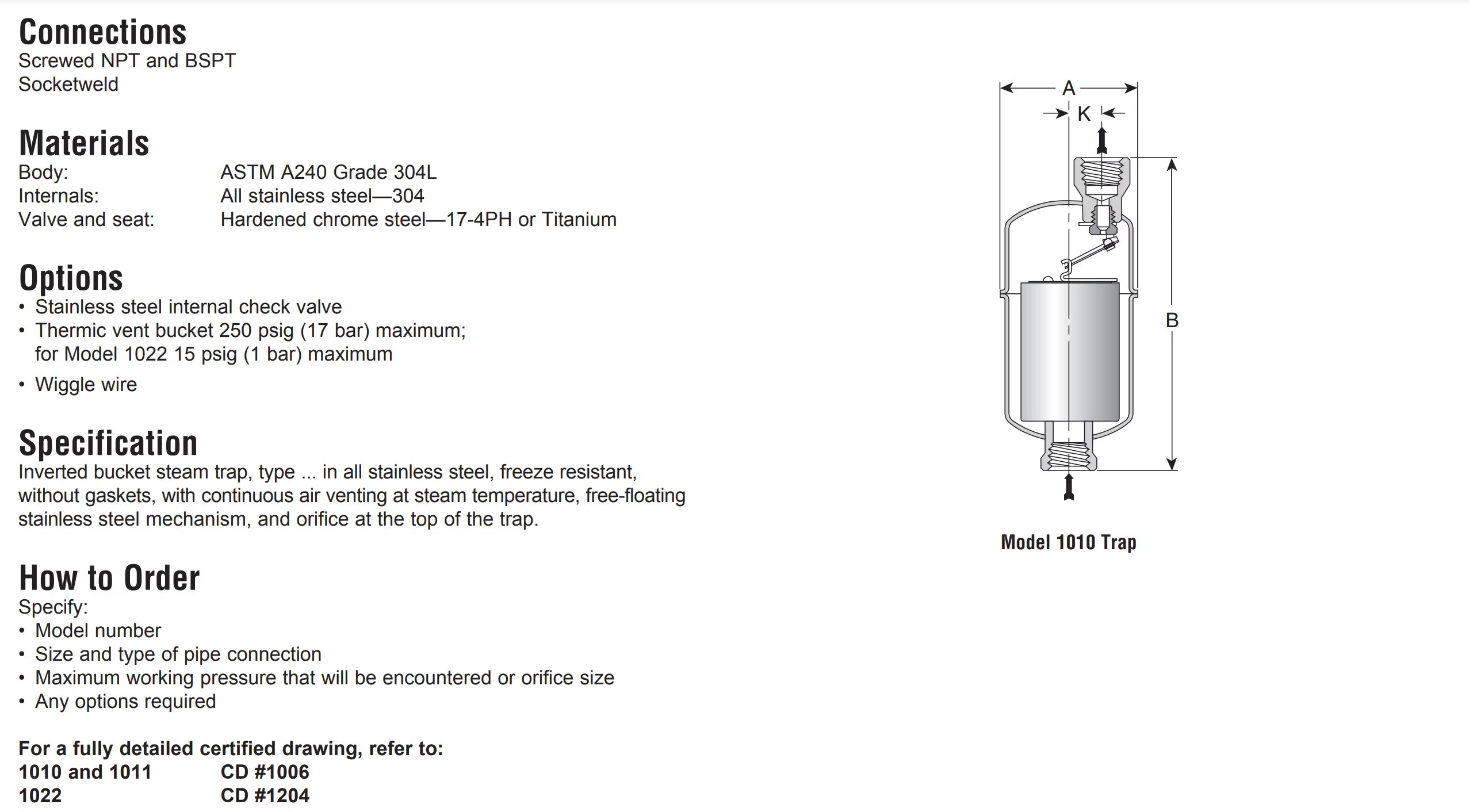

1000series parameters

Model	1010	1011	1022	1013

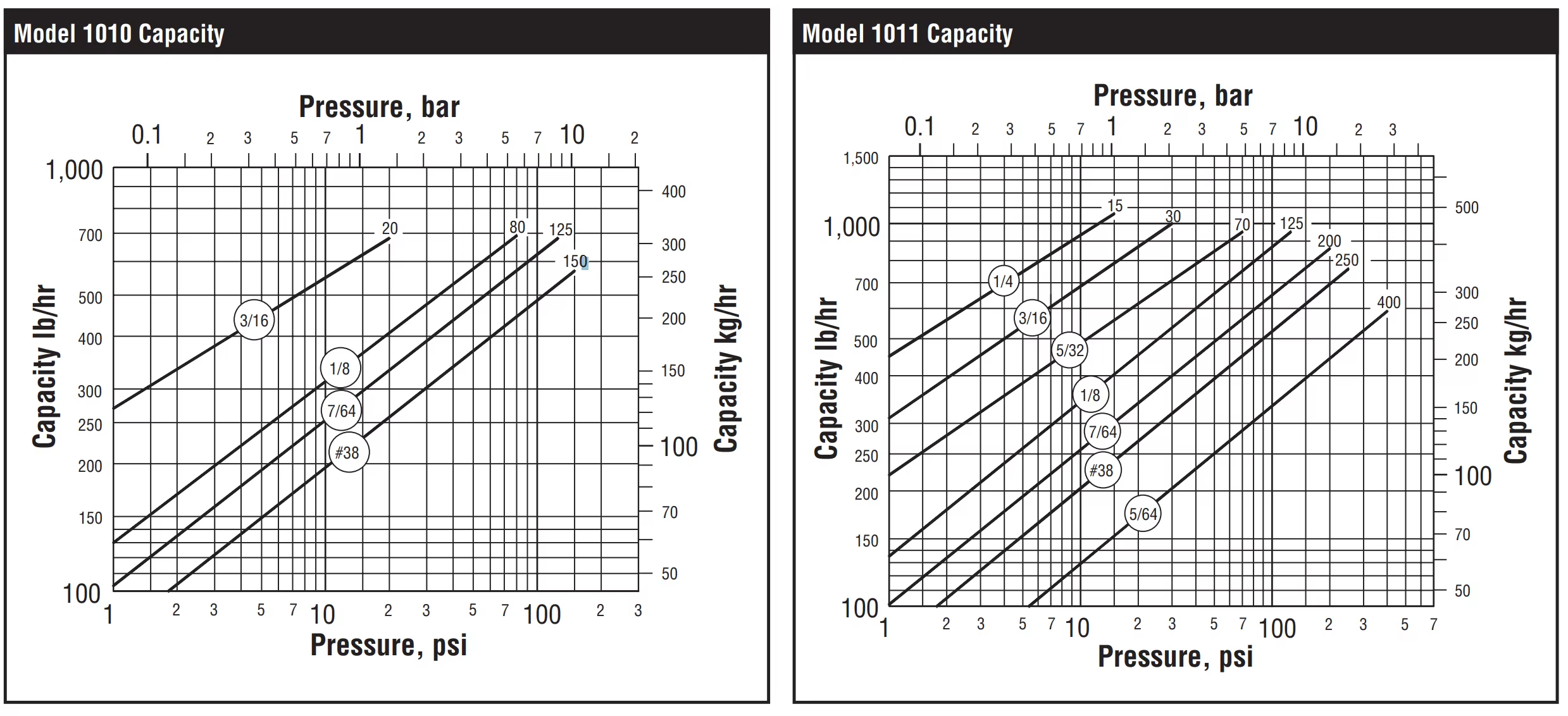

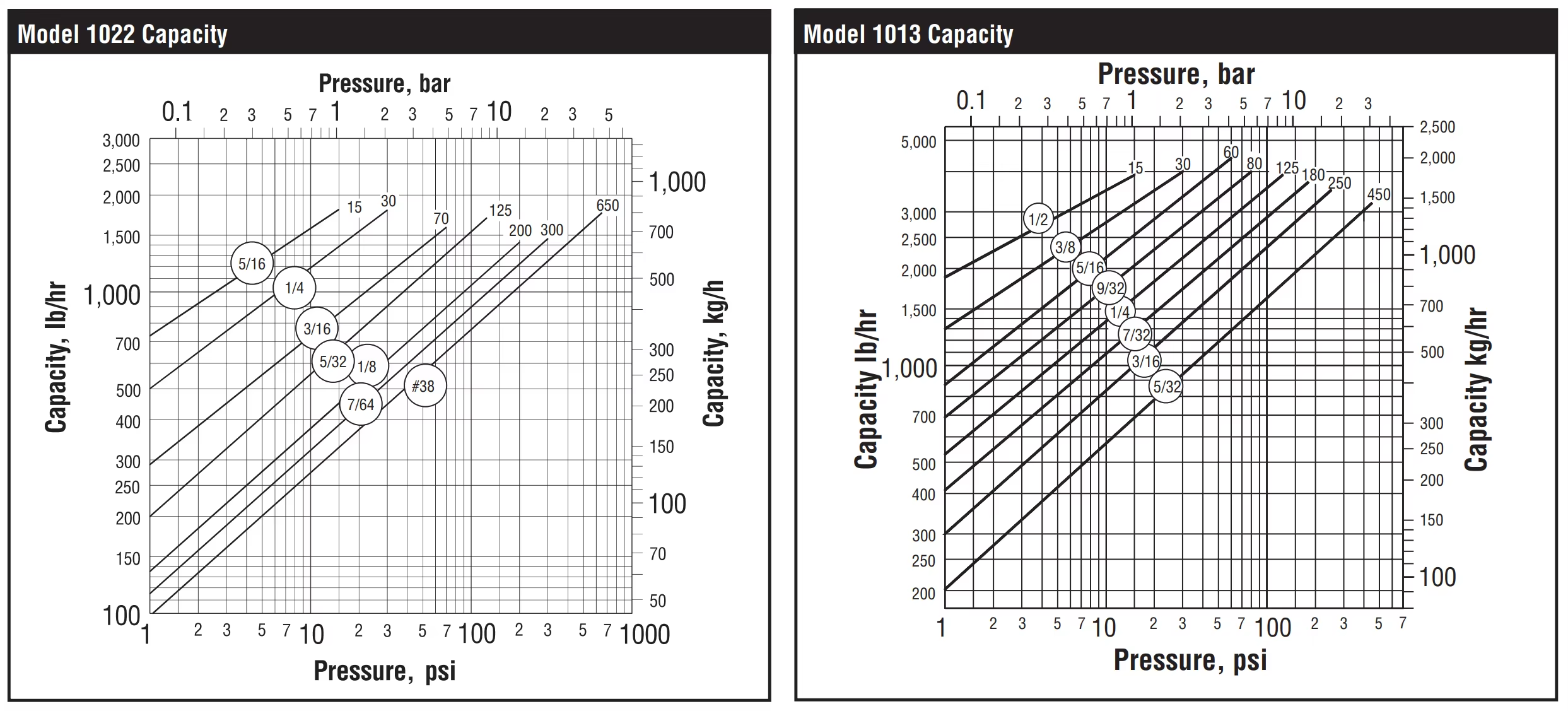

Maximum Capacity	700 lb/hr(318 kg/hr)	1050 lb/hr(476 kg/hr)	1700 lb/hr(771 kg/hr)	4400 lb/hr(2000 kg/hr)
Maximum Allowable Pressure	400 psig @ 800°F(28 bar @ 427°C)	400 psig @ 800°F(28 bar @ 427°C)	650 psig @ 600°F(45 bar @ 316°C)	450 psig @ 800°F(31 bar @ 427°C)
Body Material	ASTM A240Grade 304LStainless Steel	ASTM A240Grade 304LStainless Steel	ASTM A240Grade 304LStainless Steel	ASTM A240Grade 304LStainless Steel
Maximum Operating Pressure	150 psig(10 bar)	400 psig(28 bar)	650 psig(45 bar)	450 psig(31 bar)
Connection Type	Screwed,Socketweld	Screwed,Socketweld	Screwed,Socketweld	Screwed,Socketweld
Connection Size	1/2″ (15 mm)3/4″ (20 mm)	1/2″ (15 mm)3/4″ (20 mm)	3/4″ (20 mm)	1″ (25 mm)
