Stainless Steam Trap 1800 Series Inverted Bucket Medium Temperature Use

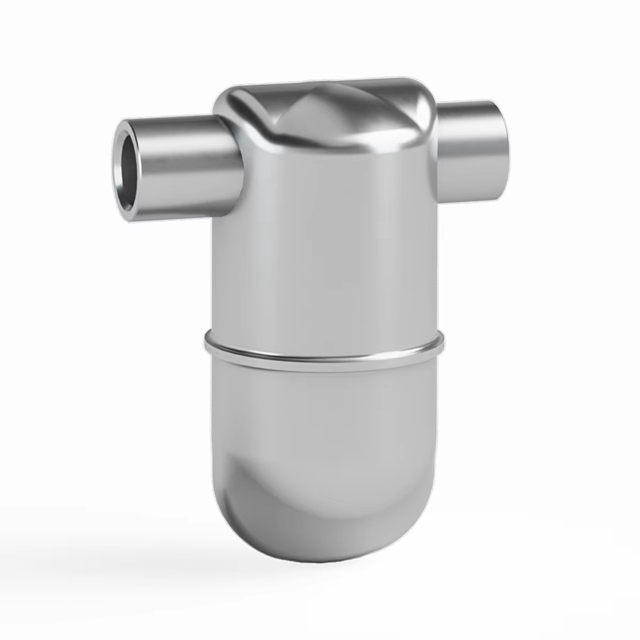

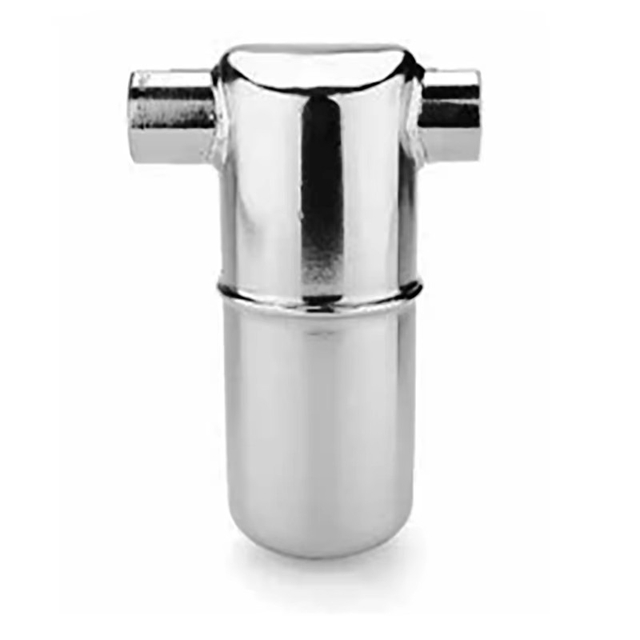

The 1800 Series inverted bucket steam traps are constructed entirely of stainless steel and designed for horizontal installation.
The Fuchen 1800 Series serves as a quick and easy in-line replacement for other types of side-inlet and side-outlet condensate traps. It incorporates all the energy-saving benefits of the proven inverted bucket design.
The side-inlet, side-outlet, fully welded structure ensures the trap operates efficiently in applications such as tracer lines, drip legs, heating processes, and similar services.
With the 1800 Series, you gain a freeze-resistant, all-stainless steel construction, a three-year warranty, and all the advantages of this reliable technology.

Quantity:
Material:	Stainless
Size:	DN15 DN20 DN25
connection:	Threaded Flange Socket welding
Availability:





Inquire Add to Basket

Model:
1810/1811/1822
Brand:
Steam

Product Description

Technical Parameters

Company Description

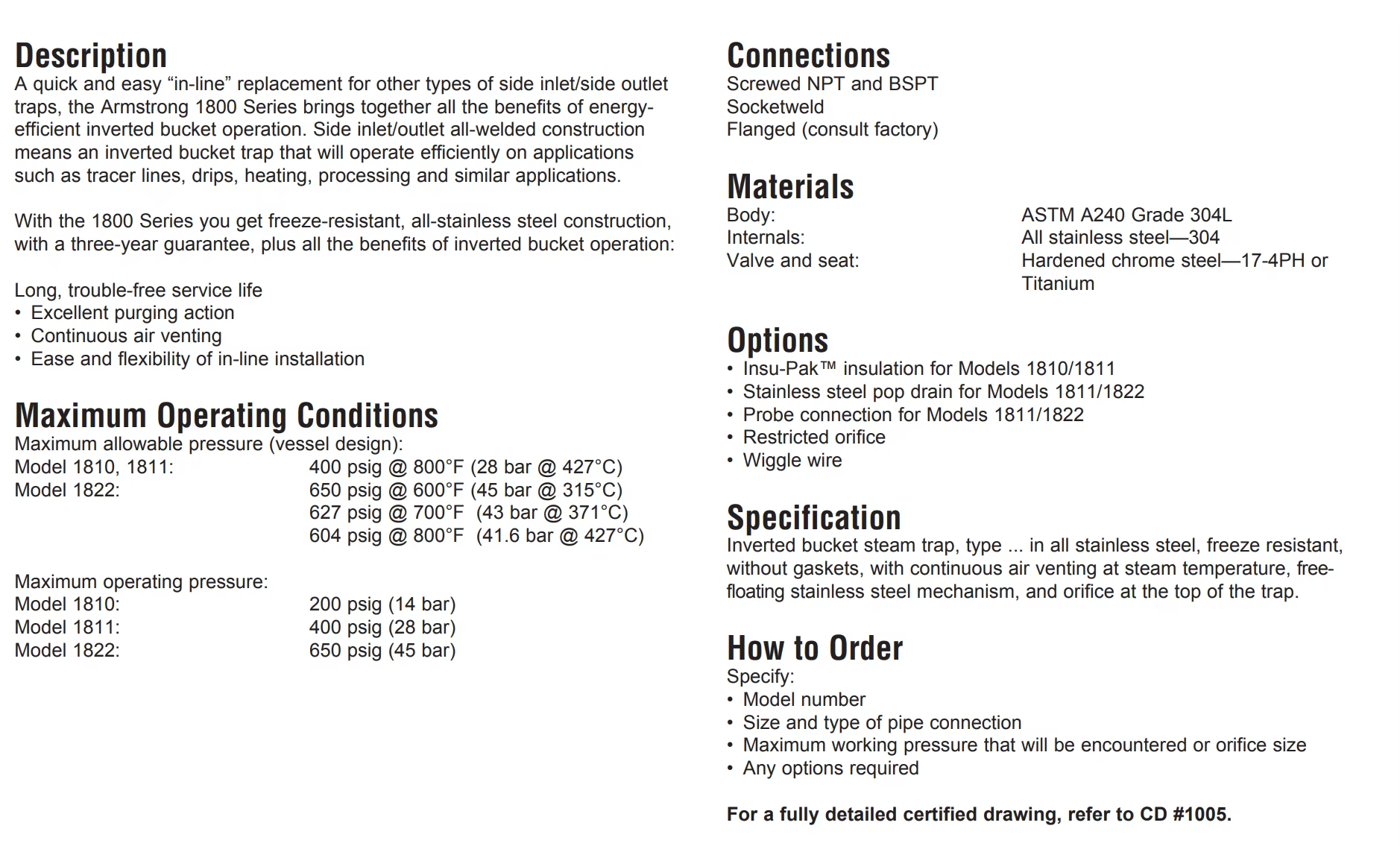

1800 series inverted bucket steam trap

1800 Series is a fast and simple in-line solution designed to replace traditional side inlet/side outlet traps. It combines the efficiency of inverted bucket technology with durable, all-welded stainless steel construction for reliable performance across a range of applications—including tracer lines, drip systems, heating, and process equipment.

Key features include:

1.Freeze-resistant, all-stainless steel build

2.Backed by a three-year warranty

3.Long-lasting, low-maintenance operation

4.Superior condensate purging

5.Continuous air venting for improved system efficiency

6.Easy, flexible in-line installation

Whether you're upgrading or replacing existing traps, the 1800 Series delivers dependable performance and energy savings in one compact package.

Application Scenarios

Hotels& Buildings

Electric Power & Heating Station

Petroleum and Chemical

Bio-Tech & Pharmaceuticals

Food and Beverages

Medical & Health

Inverted Bucket Steam Trap System Configuration Diagram

industrial system

Model	1810	1811	1822
Model	1810	1811	1822

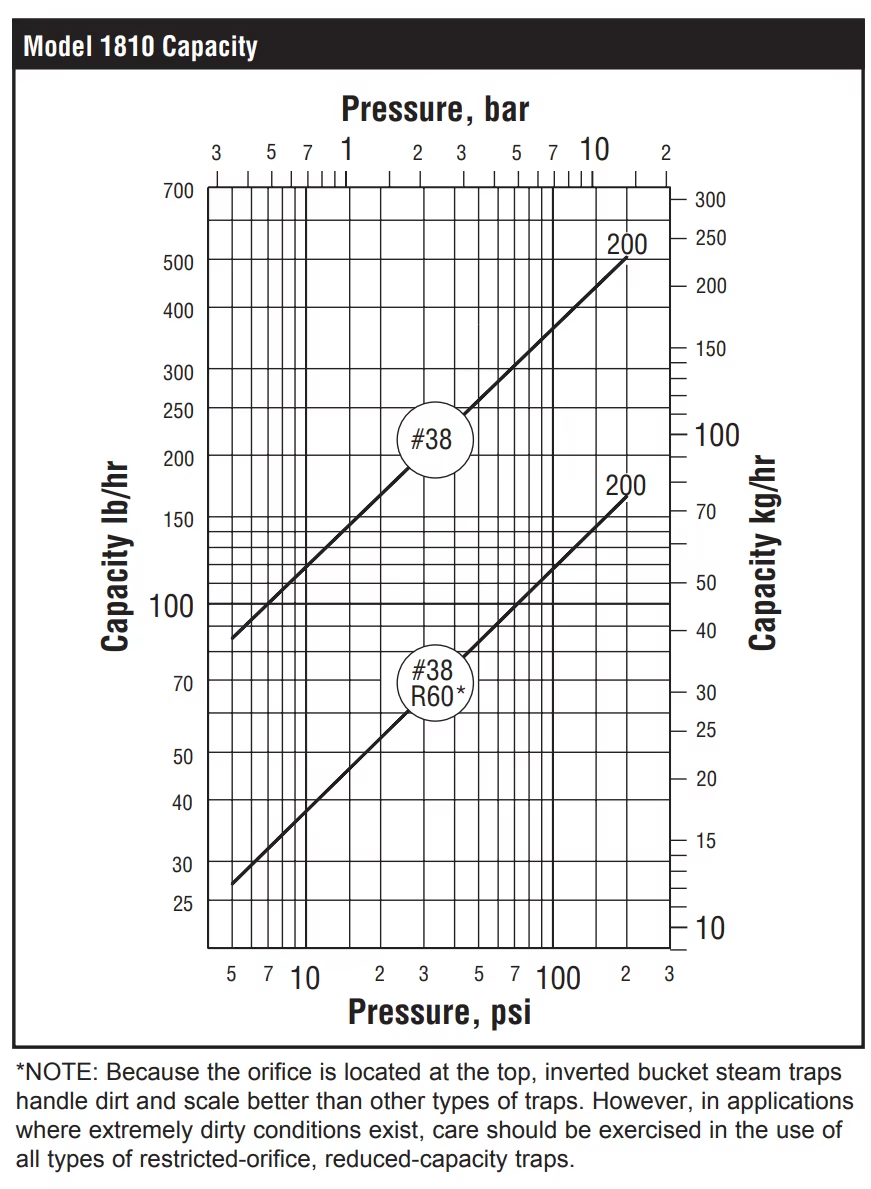

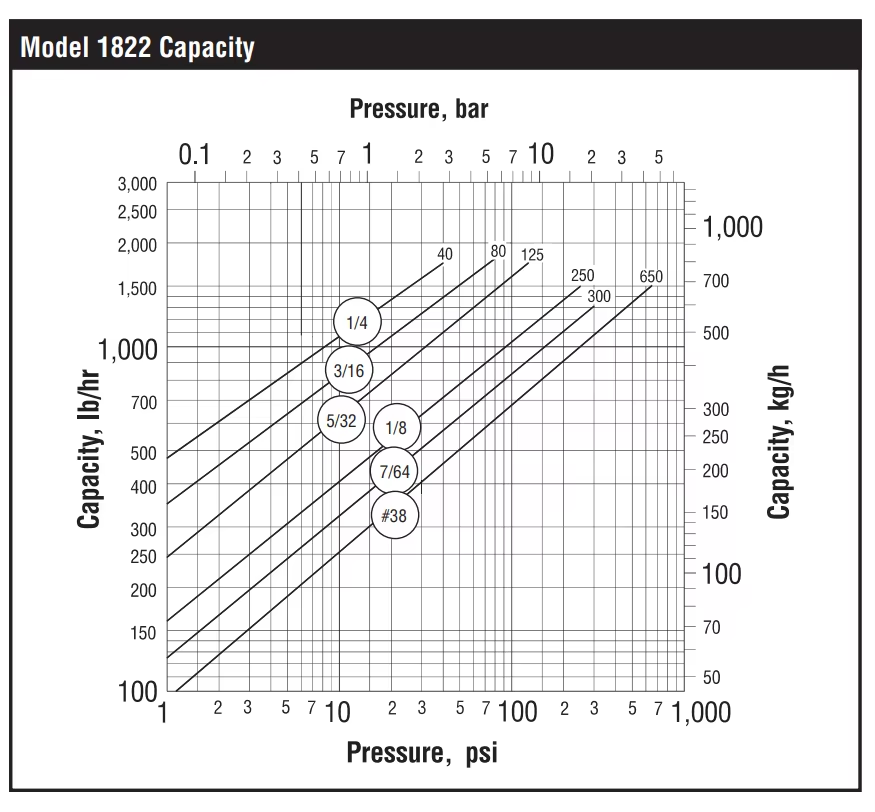

Maximum Capacity	500 lb/hr (227 kg/hr)	1020 lb/hr (463 kg/hr)	1802 lb/hr (817 kg/hr)
Maximum Allowable Pressure	400 psig @ 800°F (28 bar @ 427°C)	400 psig @ 800°F (28 bar @ 427°C)	650 psig @ 600°F (45 bar @ 316°C)
Body Material	ASTM A240 Grade 304L Stainless Stee	ASTM A240 Grade 304L Stainless Stee	ASTM A240 Grade 304L Stainless Stee
Maximum Operating Pressure	200 psig (14 bar)	400 psig (28 bar)	650 psig (45 bar)
Connection Type	Screwed, Socketweld, Flanged	Screwed, Socketweld, Flanged	Screwed, Socketweld, Flanged
Connection Size	3/8″ (12 mm) 1/2″ (15 mm)	1/2″ (15 mm) 3/4″ (20 mm)	1/2″ (15 mm) 3/4″ (20 mm) 1″ (25 mm)
